Manufacturer Cat No: 118-012-11

Range: 0 mm - 500 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,05 mm

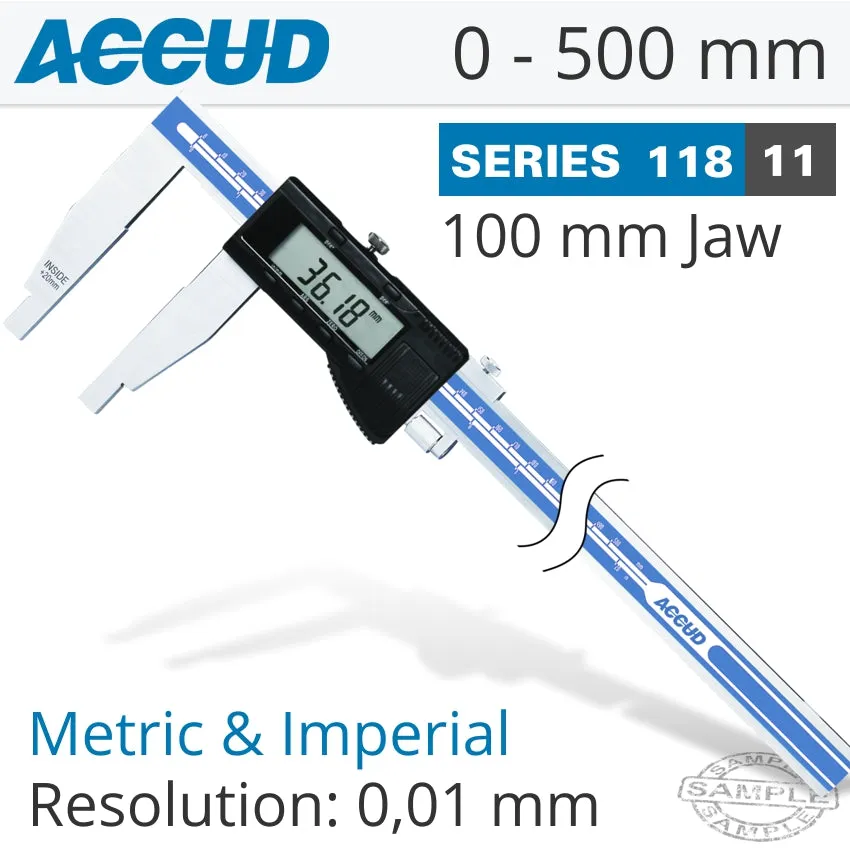

Electronic Caliper with extended jaws

Professional quality workshop electronic unidirectional caliper with measuring range of 0 - 500 mm | 20' (in) and measuring resolution 0,01mm / 0.0005'. A USB data output slot makes measurement recording possible to a computer. Data cable code 100-15.

When using the caliper for inside measurements, add 20mm as engraved on the jaw end. See measurement explaind as 'w' in the specifications tab.

Made of stainless steel.

Features at a glance

• Resolution: 0.01mm / 0.0005'
• Buttons: on/off, zero, mm/inch, ABS, data preset
• Data output (cable code:100-15)
• 100 mm jaw length
• Made of stainless steel

Technical parameters:

Description	Spec
Measurement range:	0 - 500mm / 20'
The length of the jaws h:	100 mm
Resolution:	0.01 mm | 0.0005 '
Accuracy:	± 0.05 mm
Jaw marking:	for internal measurements add 20mm
Dimension a:	12 mm
Dimension c:	24 mm
Dimension w:	20 mm
ABS function	YES
Button Off / On:	YES
ZERO button:	YES
mm / inch switch:	YES
Data output socket:	YES
Lock type:	screw
Construction:	stainless steel

---
