| Brand: Anjielo Smart | ConnectionMethod: Wired |
| Answering Mode: Hands-free | Camera Sensor type: CMOS |
| Display Size: 7 | Display Screen Type: Color |
| Material: Acrylic Wire Drawing Panel | Power: 220v |
| Installation: Wall Mounting | Power: External power DC12V |
| Waterproof: Yes | Zone Input: 4 |
| Resolution: > 420 TV Line | Doorbell: Yes |
| Viewing Angle (°): 65 | Samrt Home Interface: No |
| Access Control: None | Technology: Analog |
| Camera: Color | Size: 7 Inch Video Intercom System |
| Model Number: P201S1M706S1-16G | Type: Intercom System |
| IP Camera Interface: No | Sensor Size(Inch): 1/3 |
| Kit Configuration: One to One video doorphone | Video Languages: English, Russian, French, Arabic, Spanish,Japanese |
| Intercom Mode: Hands-free Dual communication | Memory: 86 Pictures, Support Max.32G SD Card |
| Conversation Duration: 120s | Resolution: 800(H)*3(RGB)*480(V), 3.7MM HD Pinhole Lens |
| Volume: Adjustable Day/Night | Support: 2 call panel 4 indoor monitor 2 Analog camera & 2 PIR |
| Power Source: Outdoor Doorbell Powered By Indoor Monitor | Waterproof: IP65 Aluminum Panel |
| Camera Sensor: 1/3 | Volume: Adjustable Day/Night |

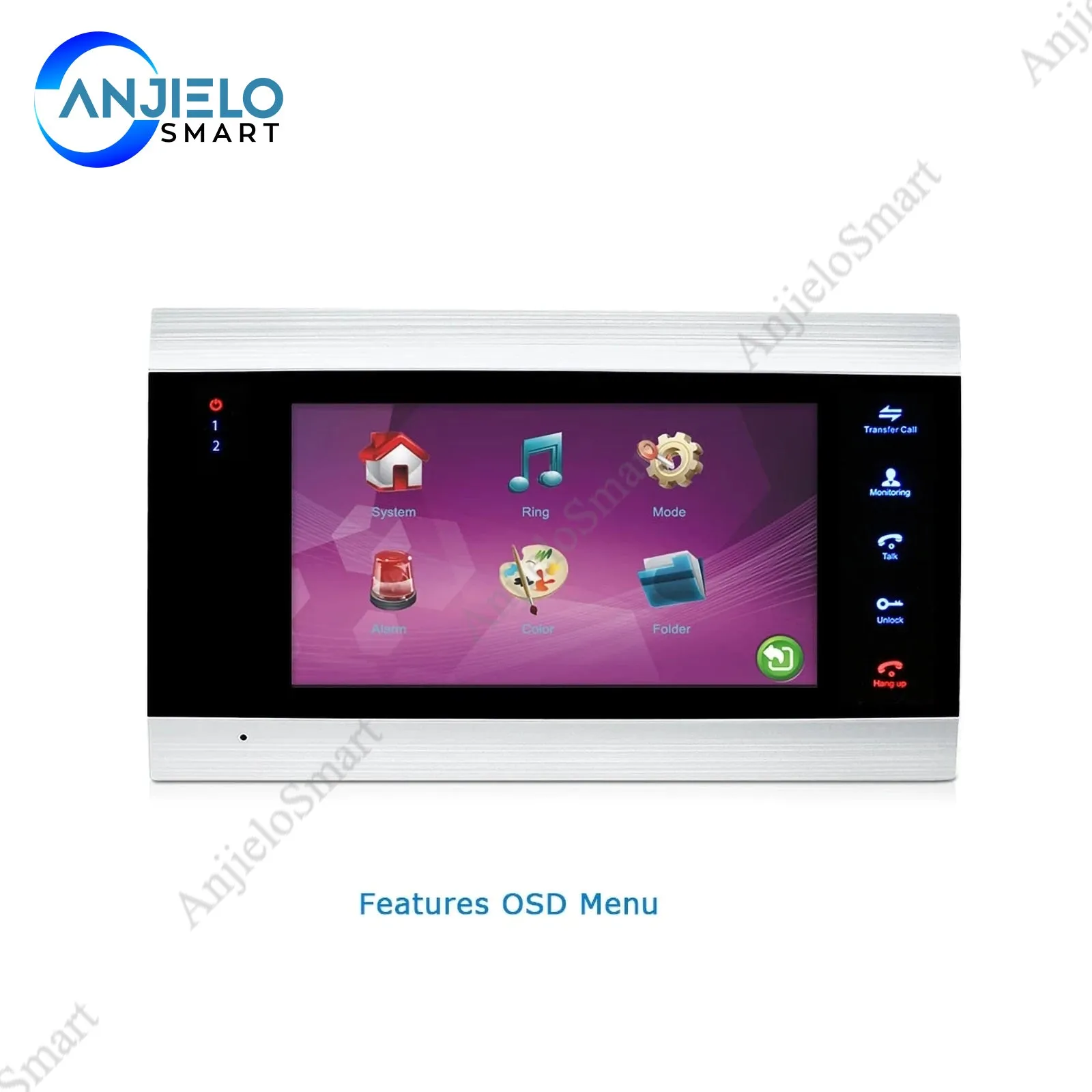

Multi-languages OSD Menu
The System Supports Six Different Languages: English, Russian, French, Arabic, Spanish, Japanese.

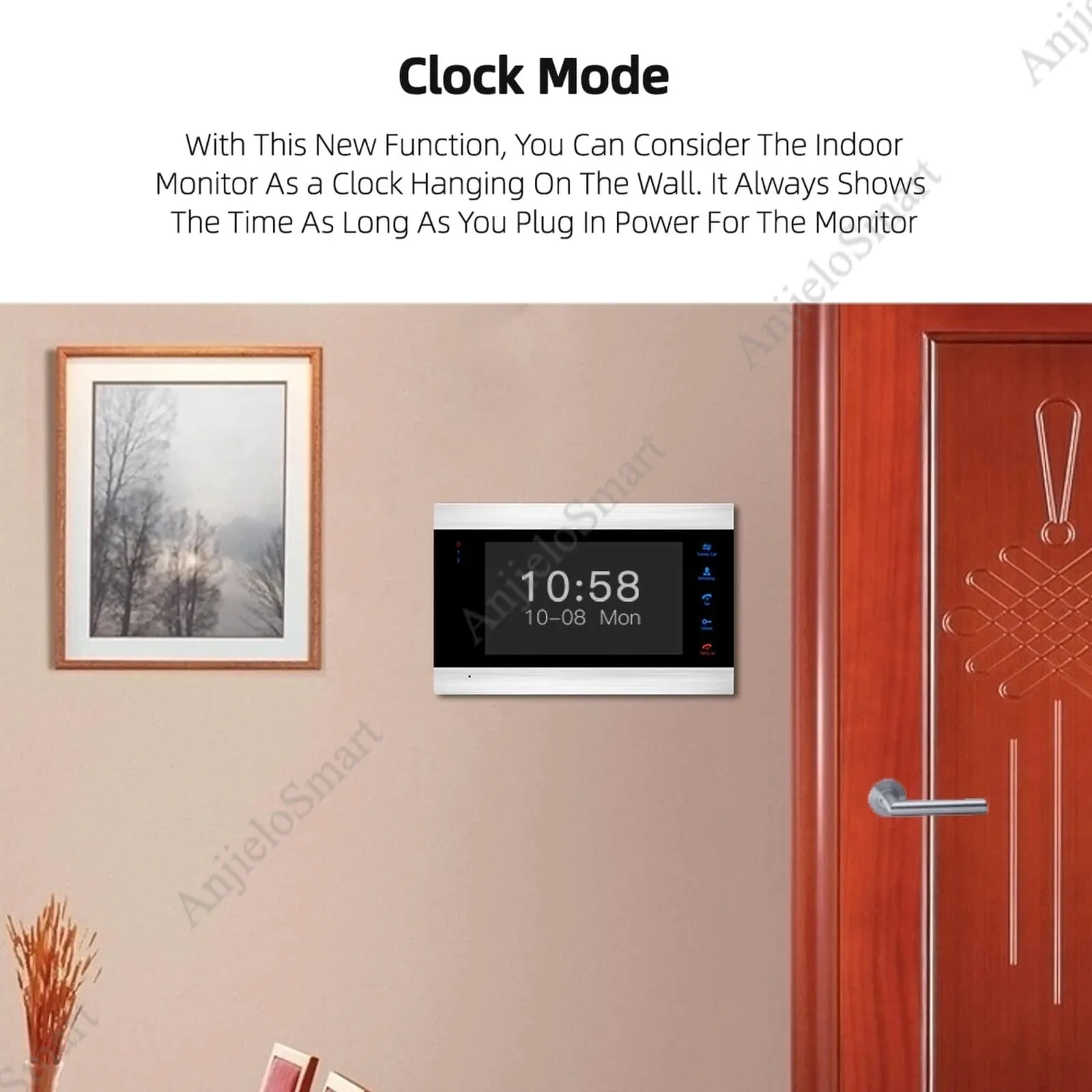

Clock & Date Mode
The latest software is the monitor standby time.
If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor.
It can protect the life of the screen.
Touch Sensor Button, Acrylic Wire Drawing Panel
Indoor Monitor Is Made Of Acrylic Wire Drawing Panel And TFT Display, Very Elegant Design, It Adopts Advanced Touch Technology . With Sensitive Blue And Red Light.
1200TVL Resolution Camera, View More Clearly
1200TVL High-Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.

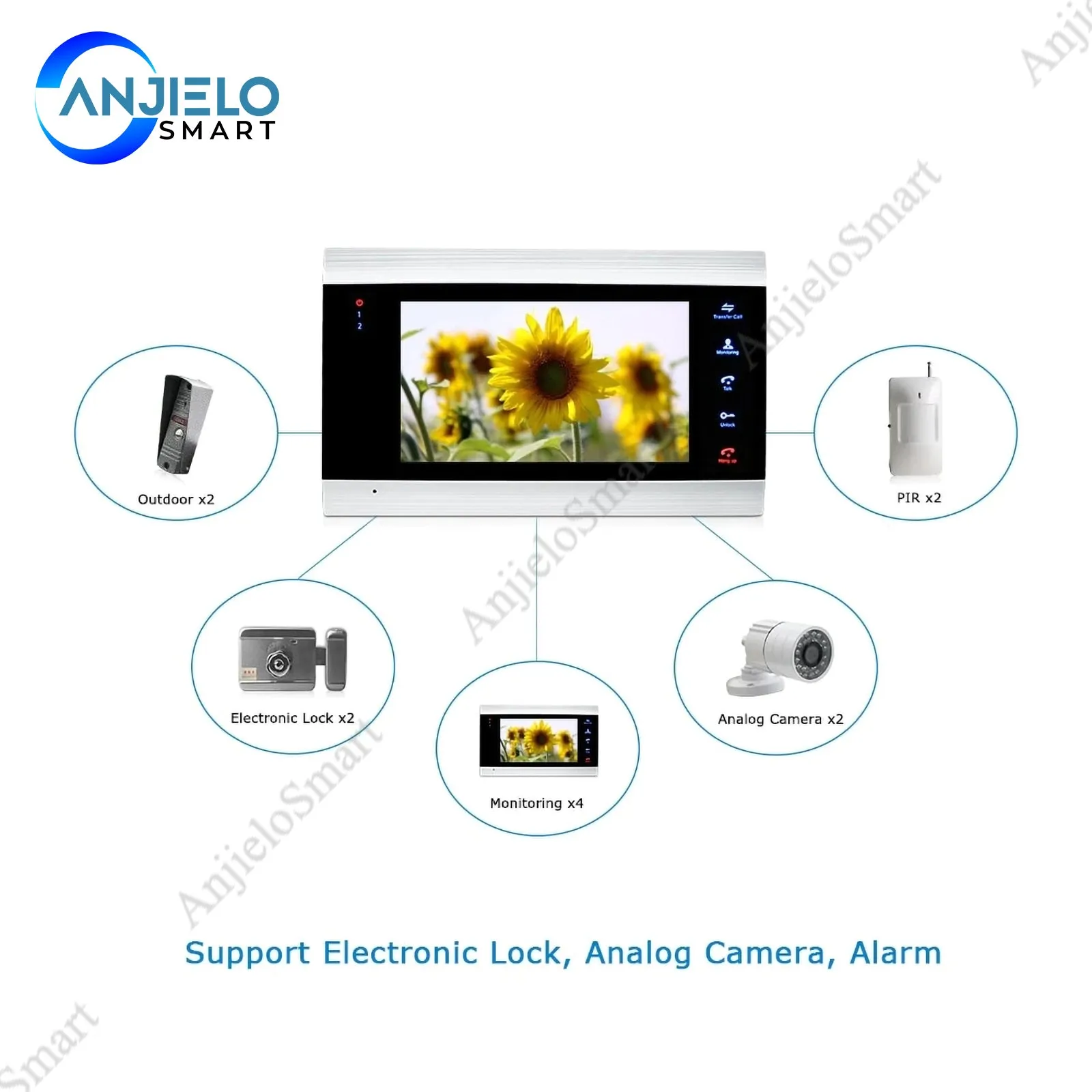

Support Electronic Lock, Analog Camera, PIR (Not Included)
Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera, And Electronic Lock. It Can Protect Your Home And Property In All Aspects.
Please Notes:
PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.
Dual-way Intercom, Call Transfer Among Monitors
This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera But Also Supports Communication Between Monitor And Monitor.
Adjust Lock Time, Compatible With All Electronic Lock (Not Included)
Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

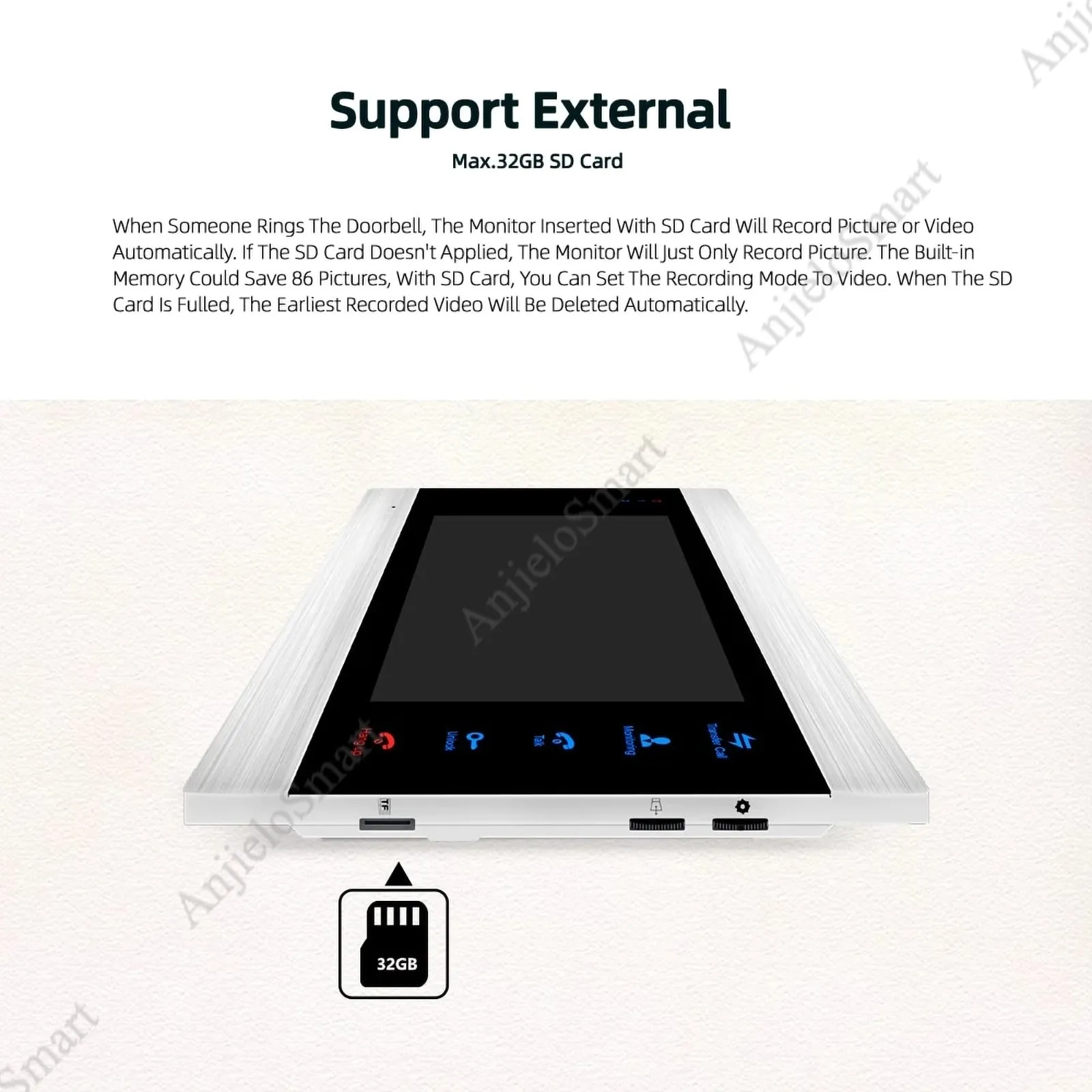

Video or Picture Record, 16G SD Card Included
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Apply, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.
IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.
IR LED Offset Lighting Can Obtain Better Evening Viewing
It Helps You Identify The Visitors Even In The Dark Night.
|
Fashionable Appearance ♦1200TVL Camera ♦3pcs 940 Nanometer IR LEDs For Night Vision ♦Adjustable Intercom Volume ♦Dual-way Intercom ♦IR Sensor, Turn On/off IR LEDs Automatically ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦IP65 Weatherproof |
|
Product Specs-Outdoor |
|
|
Camera Sensor |
1/3" CMOS, 1200TVL-Line High Resolution |
|
Lens |
3.7MM HD Pinhole Lens |
|
Night Vision |
IR Light, 3pcs IR LEDs |
|
Electronic Lock |
Support |
|
Power Consumption |
200mA Max. |
|
Power Supply |
Supplied From Indoor Monitor |
|
Material |
Aluminum Alloy panel |
|
Waterproof |
IP65 |
|
Operation Temp |
-40°C 50°C |
|
Installation |
Surface Mounted |
|
Excellent Performance ♦7" TFT Display, Acrylic Wire Drawing Panel ♦Touch Button, With Storage ♦Room to Room Intercom ♦Door Answering, Monitoring, And Unlocking ♦Adjustable Color, Brightness, and volume ♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card ♦12 Ringtone For Choice |
|
Product Specs-Monitor |
|
|
Monitor & Resolution |
7" TFT LCD, 800*480 |
|
Memory |
Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card |
|
Intercom Code |
Hands-free Dual-way Communication |
|
Delay Calling Time |
120s |
|
Keypad |
Touch Button |
|
Power Input & Consumption |
External Power DC 12V; Standby:3W; Working:5W |
| Material | Acrylic Wire Drawing Panel |
|
Recording |
Picture: Jpeg Format; Vide: Avi Format |
|
Support |
2 Call Panel 4 Indoor Monitor 2 Analog Camera & 2 PIR |
|
Operation Temp |
-10°C 60°C |
|
Installation |
Surface Mounted |
Package
|
1x Indoor Monitor 16G SD card 1x Monitor Mounting Plate 1x Power Adapter 5x 200mm 4 Pin Connector 2x Guarantee Card 2x User Manual |
1x Outdoor Call Panel 1x Call Panel Mounting Plate 1x 200mm 2 Pin Connector 2x Screw Bag 2x Qualified Certificate 1x Rain Cover |
Please Notes:
The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)
We Will Send Applicative Power Adapter To Your According To Your States
Installation Method

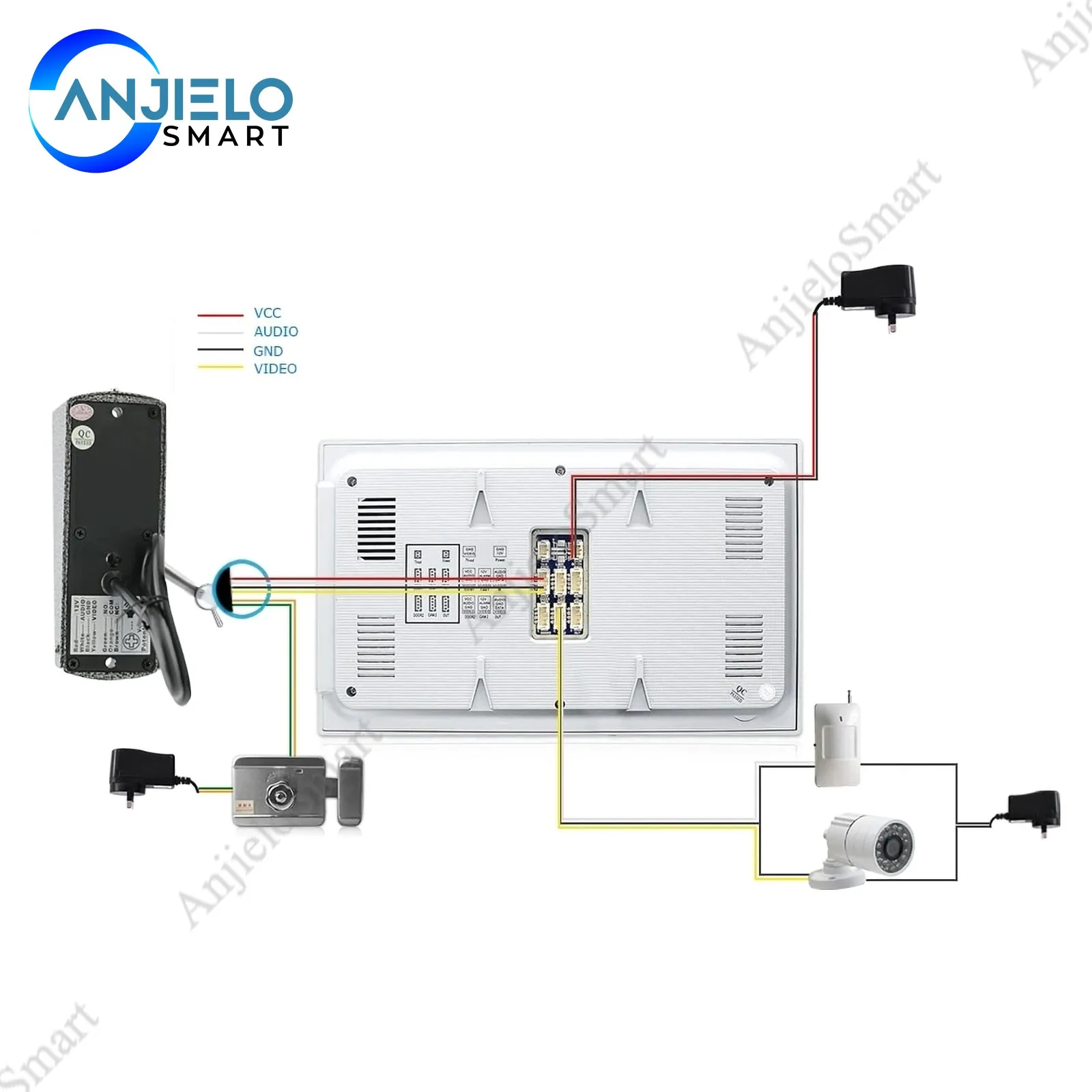

Connection Diagram
PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).
Villa Intercom System
