Name: Blue Sea 4378 WeatherDeck Circuit Breaker Panel - 8 Position
SKU: 318470

Product Details ＋

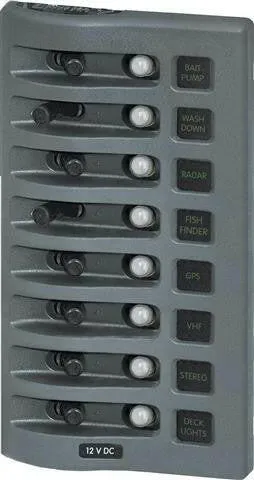

4378 - WeatherDeckâ„¢ Water Resistant Circuit Breaker Panel 8 Position - Gray

Blue Sea Systems WeatherDeck(TM) Waterproof Circuit Breaker Panels provide circuit protection for flybridge and open-cockpits with push-to-reset control. Switch guards reduce the risk of accidental switching and are designed for 12 or 24 volt systems. The weather-resistant faceplate is UV stabilized and snaps on and off for access to components and conceals mounting screws. 4.25"W x 7.7"H x 3.5"D.

Rated IP67-temporary immersion for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting allows switching and dimming
Compatible with all Blue Sea Systems Digital Dimmers
Available in 4 and 6 circuit models
Each panel can be mounted in four different orientations
UV stabilized and weather resistant faceplate
Constructed from corrosion resistant materials
Green LEDs illuminate circuit labels
Includes 4215 - 30 Square Format Labels

Specifications

Panel Material	Reinforced Thermoplastic
Backlighting Voltage	12 or 24 Volts DC
Circuit Breaker Rating	15 amperes
Cover Material	UV Resistant Thermoplastic
Switch Rating	15 Amperes Maximum
Height in" (mm)	7.70 (195.58)
Maximum Voltage Rating	12 or 24 Volts DC
Circuit Breaker Type	Thermal Trip, Manual Reset Only with waterproof boot
Weight Lb (Kg)	1.83 (0.83)
Maximum Amperage Per Circuit	15 Amperes @ 12 Volts DC, 9 Amperes @ 24 Volts DC
Width in" (mm)	4.25 (107.95)
Panel Cumulative Rating	45 Amperes
Switch Type	OFF/ON Toggle
Backlighting Amperage Draw	10mA / Illuminated Circuit
