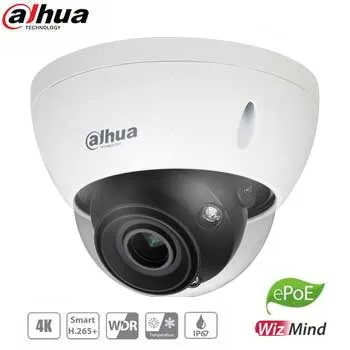

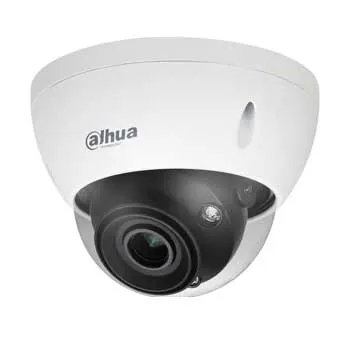

Name: Dahua / IP / 8MP / Dome Camera / Motorized Varifocal / 2.7-12mm Lens / Outdoor / WDR / IP67 / IK10 / 50m IR / ePoE / 5 Year Warranty / DH-N85DL6Z
SKU: 318465

Product Details ＋

DH-N85DL6Z

The Dahua 8 MP Starlight ePoE camera offers Analytics functions at the edge – performing complex real-time face capture, people counting, and perimeter protection surveillance. The Dahua Analytics algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight , True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.

1/1.8-in. 8 MP Progressive-scan CMOS Sensor
Triple-stream Encoding
AI Coding, Smart H.265 , and Smart H.264 Video Compression
8 MP (3840 x 2160) at 30 fps, 2.7 mm to 12 mm Motorized Lens
Enhanced Power and Data Transmission Distances (ePoE)
Starlight Technology for Low-light Applications
Analytics Functions — Perimeter Protection, People Counting, Queue Management, Smart Motion Detection , and Face Detection
IP67 Ingress Protection and IK10 Vandal Resistance
True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
Maximum IR LED Distance 40 m (131.23 ft)
Five-year Warranty (for products sold through an authorized Dahua Dealer)
Call 1-800-878-6604 for Dealer Prices!

Technical Specifications

Series:	Pro
Body:	Dome
Image Sensor:	1/1.8-in. 8 MP CMOS
Resolution:	8 MP, 3840(H) x 2160(V)
RAM/ROM	1 GB / 128 MB
Angle of View:	Horizontal: 110.4° to 45° Vertical: 57.8° to 25.2° Diagonal: 133.8° to 51.8°
Lens Type:	Motorized
Focal Length:	2.7 mm to 12 mm
Min. Illumination:	Color: 0.004 lux at F1.4 (30 IRE) B/W: 0.0004 lux at F1.4 (30 IRE) 0 lux at F1.4 (with IR on)
WDR:	120dB
Video Compression:	AI Coding, Smart H.265 , H.265, Smart H.264 , H.264, H.264B, H.264H, MJPEG (sub stream only)
Audio Compression:	G.711a, G.711Mu, AAC, G.726
Frame Rate:	Main Stream: 8 MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 30 fps
Multi-Streaming:	3 Streams
IVS:	Tampering with the camera, Error writing to an onboard Micro SD card, Error sending or receiving data over the network, Unauthorized access to the camera, IP Address Conflict
Operating Temp:	–40° C to 60° C (–40° F to 140° F) Less than 95% RH
Power:	12 VDC (±25%), 24 VAC (±30%), PoE (IEEE 802.3af, Class 0), or ePoE
ePoE:	Yes

Camera
Image Sensor	1/1.8-in. 8 MP CMOS
Effective Pixels	3840(H) x 2160(V)
RAM/ROM	1GB / 128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.05 lux at F1.4 (1/3 s, 30 IRE) B/W: 0.0004 lux at F1.4 (30 IRE) 0 lux at F1.4 (with IR on)
S/N Ratio	Greater than 56 dB
IR Distance	Distance up to 40 m (131.23 ft)
IR On/Off Control	Auto, Manual, Off
IR LEDs	Three (3)
Lens
Lens Type	Motorized
Mount Type	ø14
Focal Length	2.7 mm to 12 mm
Max Aperture	F1.4
Angle of View	Horizontal: 110° to 40° Vertical: 58° to 23°
Aperture Control	Auto
Close Focus Distance	1.0 m (3.28 ft)
DORI¹ Distance - Detect (8 ppf)	Wide: 86.0 m (282.20 ft) Telephoto: 196.0 m (643.0 ft)
DORI¹ Distance - Observe (19 ppf)	Wide: 34.40 m (112.90 ft) Telephoto: 78.40 m (257.20 ft)
DORI¹ Distance - Recognize (38 ppf)	Wide: 17.20 m (56.40 ft) Telephoto: 39.20 m (128.60 ft)
DORI¹ Distance - Identify (76 ppf)	Wide: 8.60 m (28.20 ft) Telephoto: 19.60 m (64.30 ft)
Installation Angle
Range	Pan: 0˚ to 355˚ Tilt: 0˚ to 80˚ Rotation: 0˚ to 355˚
Video
Compression	AI Coding, Smart H.265 , H.265, Smart H.264 , H.264, H.264B, H.264H, MJPEG (sub stream only)
Streaming Capability	Three (3) Streams
Resolution	8 MP (3840 x 2160), 3072 x 2048, 3072 x 1728, 2592 x 1944, 4 MP (2688 x 1520), 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate	Main Stream: 8 MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 30 fps
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 Kbps to 8192 Kbps H.265: 32 Kbps to 8192 Kbps
Day/Night	Auto (ICR), Color, B/W
BLC Mode	BLC, HLC, True WDR (120 dB), SSA
Gain Control	Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction	3D DNR
White Balance	Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control	Auto, Manual
Noise Reduction	3D DNR
Motion Detection	Off, On (4 Zones, Rectangular)
Region of Interest	Off, On (4 Zones)
Advanced Features	Smart IR, Defog
Flip	0°, 90°, 180°, 270°
Mirror	Off, On
Privacy Masking	Off, On (8 Areas)
Audio
Compression	PCM, G.711A, G.711Mu, G.726
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability	ONVIF Profile S, G, T; CGI; Milestone; P2P
Streaming Method	Unicast, Multicast
Maximum User Access	20 Users (Total bandwidth: 80 Mbps)
Edge Storage	Network Attached Storage (NAS) FTP, SFTP, Micro SD Slot, maximum 256 GB
Web Viewer	IE (Version 8 and higher), Chrome, Firefox, Safari (Version 12 and higher)
Management Software	DSS, DMSS
Mobile Operating System	IOS, Android
Cybersecurity	Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety	UL60950-1 CAN/CSA C22.2 No.60950-1-07, EN60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU
Interface
Video	One (1) RCA Port (for installation adjustment)
Audio	Input: One (1) Channel, terminal Output: One (1) Channel, terminal
Alarm	Input: One (1) Channel (5 mA, 3 VDC to 5 VDC) Output: One (1) Channel (300 mA, 12 VDC)
Electrical
Power Supply	12 VDC (±25%), 24 VAC (±30%), PoE (IEEE 802.3af, Class 0), or ePoE
Power Consumption	12 VDC: Standard 5.2 W, Maximum 9.6 W 24 VAC: Standard 5.0 W, Maximum 9.9 W PoE: Standard 5.5 W, Maximum 10.1 W
Environmental
Operating Conditions	–30° C to 60° C (–22° F to 140° F), 10% to 95% RH
Storage Conditions	–30° C to 60° C (–22° F to 140° F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	ø159.10 mm x 118.10 mm (ø6.26 in. x 4.64 in.)
Net Weight	0.95 kg (2.09 lb)
Gross Weight	1.20 kg (2.65 lb)
Intelligence	IVS triggers an alarm and takes a defined action for the following events:
Standard Features	Tampering with the camera, Error writing to an onboard Micro SD card, Error sending or receiving data over the network, Unauthorized access to the camera, IP Address Conflict
Premium Features
Missing Object	An object is missing from a designated area
Abandoned Object	An object is placed in a designated area where no object should be
Scene Change	A person or object moves the camera to change the scene or covers the camera to obscure the scene
Fast Moving	Target exceeds a set speed when exiting a defined area
Parking Detection	Vehicle remains in a defined area without motion for a set period of time
Crowd Gathering	Specified number of people remain inside a defined area for a set time
Loitering Detection	Target is in motion inside a defined area longer than a specified amount of time
Heat Map	Generates a visual representation of data

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. The video frame rates listed are the maximum rates for each stream. The actual video rates are subjected to the total encoding capacity. 3. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when searching and playing back recorded video.
