Product Details
The SIX BAR S represents an innovative line of creative LED batten solutions that harmonizes the latest in LED color technology with versatile design for greater artistic expression. An upgrade of Elation’s beloved SixBar 500, the SIX BAR S raises the bar with more output, a broader color spectrum and an overall superior quality of light.

Equipped with 20W RGB Lime Amber UV LEDs and boasting an impressive CRI of 93, the SIX BAR S offers a stunning array of colors, ensuring a beautifully homogenized wash of light with high-quality color reproduction. Its meticulously engineered optical system ensures even light distribution, and the proprietary RGBLA UV engine delivers high-fidelity whites and intense primaries with no color fringing. Extra-large 50 mm lenses make it ideal for direct view applications and individual cell control opens up for a myriad of design possibilities.

The half-meter-long SIX BAR S houses 6 RGBLA UV LEDs and packs a punch at over 4000 lumens. With fully variable color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library, designers have immediate access to a diverse LED color array, including beautifully mixed whites. A time-efficient SixBar emulation mode ensures perfect color matching and DMX control with existing SixBar fixtures. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with an included glare shield for wall wash applications.

Designed for ultimate flexibility, the SIX BAR S's innovative housing allows for end-to-end interconnection and includes integrated L track on three sides for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

Ideal for a large variety of productions and easily integrated into installation applications, the SIX BAR S serves as a highly versatile wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more. Wrapped in a durable, fully IP65-rated housing, the fixture is suitable for any environment, indoors or outdoors, and the C4-M marine grade coating ensures protection against the harshest environments, even salty coastal air. Its fanless convection cooling guarantees silent operation, making it ideal for noise-sensitive environments.

Controllable via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the SIX BAR S also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.

Features
  • (6) 20W RGBLA UV LED Array
  • >4000 Lumens, 93 CRI
  • Extra Large 50mm Lenses

  • Beam Angle: 30°x 14° (Frost Filter Included)
  • Full Pixel Control
  • Completely Fanless Cooling
  • Integrated L Track for Flexible Mounting
  • Unique End-to-End Interconnection System
  • Art-Net, sACN and KlingNet Support
  • IP65 Rated

Specifications

Source

  • (6) x 20W RGBLA UV LEDs
  • 30,000 Hour Average LED Life*

Photometric Data

  • 4000 Total Lumen Output
  • CRI - 93
  • Beam Angle: 30x 14
  • Field Angle: 44x 30

Effects

  • Full Pixel Control
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

Color

  • RGBLA UV Color Array
  • CMY Emulation
  • Variable CCT 2400K - 8500K
  • Virtual Gel Swatch Book

Control/Connections

  • 13 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 46ch, 82ch, 36ch)
  • 8 Six Bar 500 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 18ch, 36ch, 39ch, 43ch)
  • 4 Button Control Panel, LED Display
  • Aria x2 Wireless Device Management
  • RDM (Remote Device Management)
  • IP65 5pin XLR DMX In/Out
  • IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
  • IP65 Locking Power Cable In/Out

Size/Weight

  • Length: 19.69" (500mm)
  • Width: 4.13" (105mm)
  • Vertical Height: 8.11" (206mm)
  • Weight: 14.88 lbs / 6.75kg

Electrical/Thermal

  • AC 100-240V - 50/60Hz
  • 110W Max Power Consumption
  • Power Thru Capacity: @110V: 16 Units; @240V: 32 Units
  • 5F to 113F (-15C to 45C)
  • BTU/hr ( /- 10%): 375.1

Included Items

  • Safety Cable
  • IP65 Locking Power Cable
  • Frost Filter
  • Glare Shield
  • Fixture Interconnect Key

Approvals/Ratings

  • CE | cETLus(pend) | UL | IP65c| FCC | UKCA

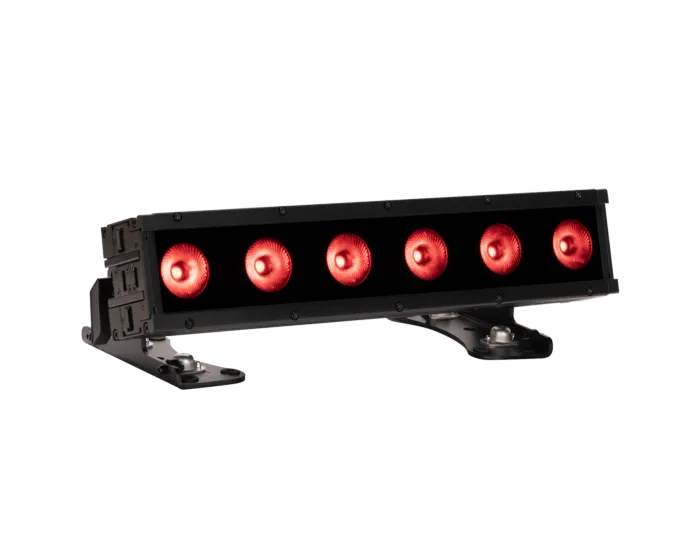

Elation SIX BAR S RGBLA UV LED Bar
