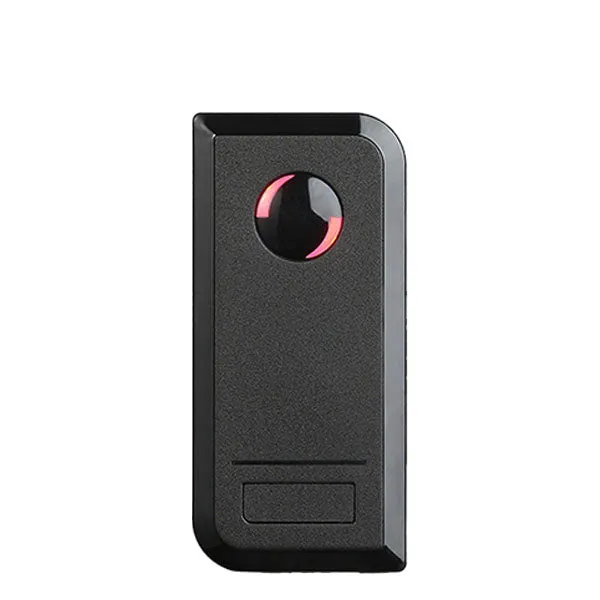

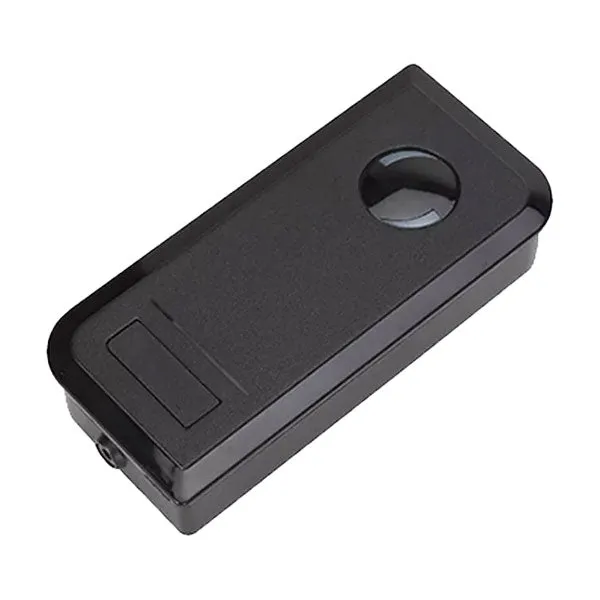

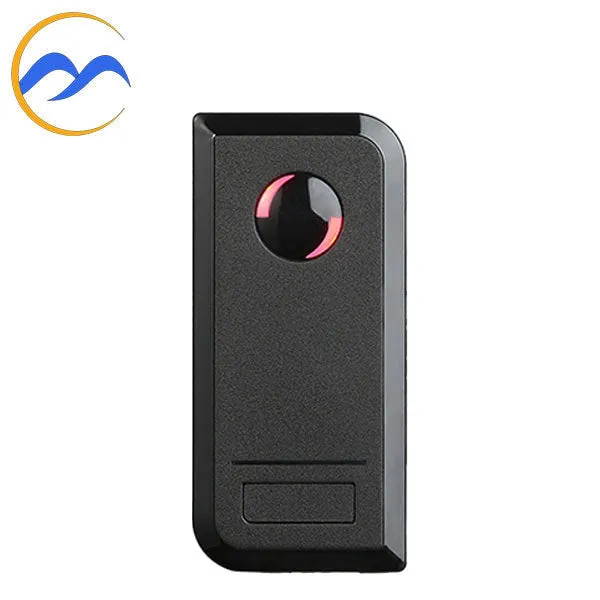

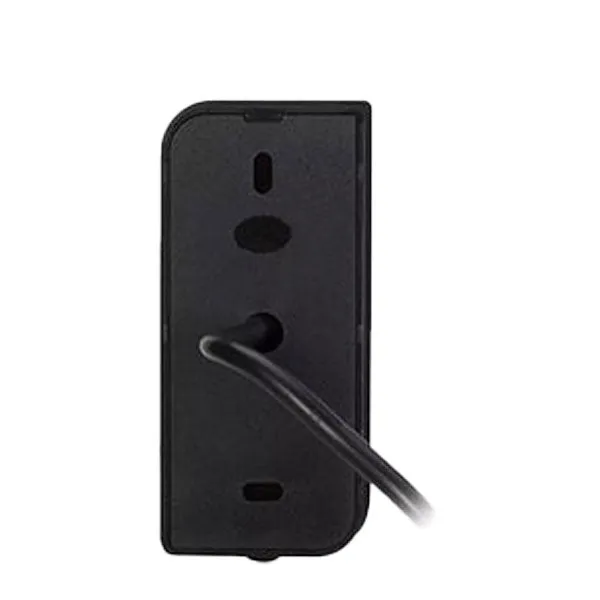

This Malibu Keypad Card Reader is a dual Frequency RFID Reader 125khz and 13.56mhz EM HID Mifare card reader. Conveniently works on both frequencies. The card readers are slim and good for mullion mount.  Wiegand 26bit output for 125khz EM and Wiegand 34bit output for 13.56mhz Mifare.

Note:  If directly installed, some metal may interfere with the RFID read.

Features:

• Frequency: 125KHz & 13.56MHz
• Read Range: Up to 7cm

• Operating Voltage: DC 9-24V
• Standby Current:  < 25mA
• Output Format: EM Wiegand 26bit, MF Wiegand 34bit

• Easy to install on Door Frame or Mullion
• Waterproof IP66
• Operating Temperature: -40° to 60°C (-40-140F)
• Operating Humidity: 10% to 95% relative humidity non-condensing
• Color: Black
• Dimension: (103L x 48W x 19H mm) (4.05L x 1.89W x .75 in)
