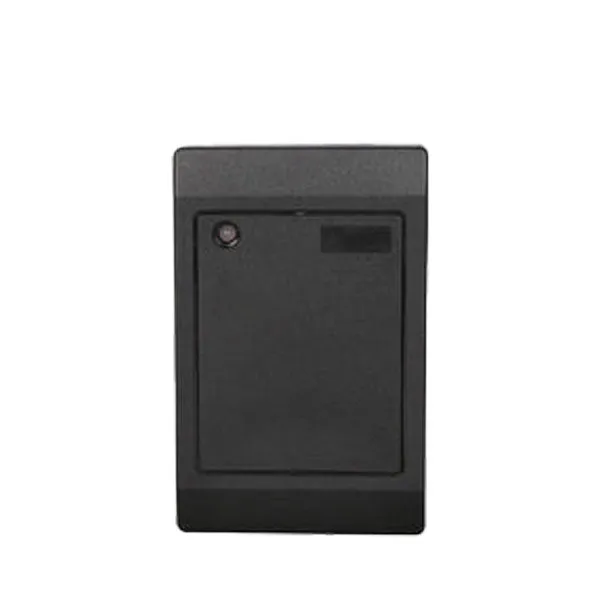

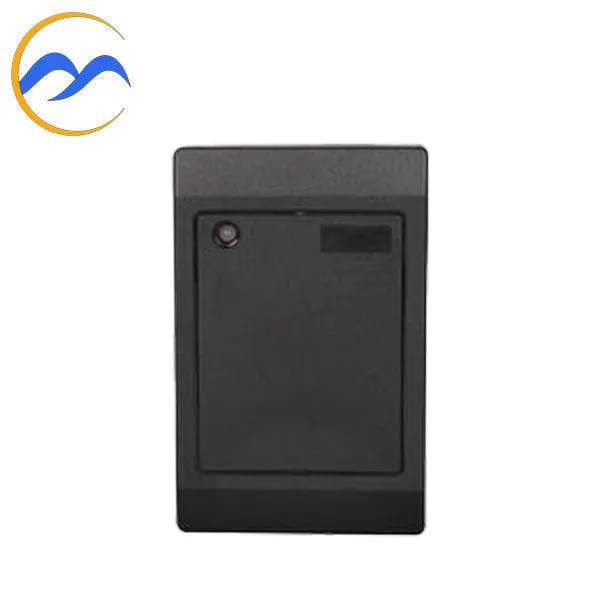

Introducing our versatile RFID reader module, compatible with both 13.56MHz Mifare and 125khz EM Prox cards! This secure and efficient solution boasts a read range of up to 5cm(13.56MHz) and 10cm (125khz) and a lightning-fast reading time of under 300ms. It's flexible and very easy to install. Additionally, it has a weatherproof (IP65) design, and solid epoxy potting, and operates in a wide range of temperatures. For user convenience, it includes an integrated beeper and two color LED indicators and even allows for the connection of external ones for further customization.

Features:

• 13.56MHz Mifare Card Reader / 125khz EM Prox

• Read Range: Up to 5CM
• Reading Time (Card): ≤300ms
• 26/34bit Wiegand (default)
• Easy to install on Metal Door Frame or Mullion
• Input Port: 2 each (External LED Control, External Buzzer Control)
• Indoor / Outdoor Operation
• Operating Temperature: -20° to 65°C
• Operating Humidity: 10% to 90% relative humidity non-condensing
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection
• Power / Current: DC 6-14V / Max.70mA
• LED Indicator: 2 Color LED Indicators (Red and Green)
• Beeper: Yes
• Color: Black
• Material: ABS PC with texture
• Dimensions: 76L x 114W x 16H mm (2.99L x 4.49W x .63H in)
