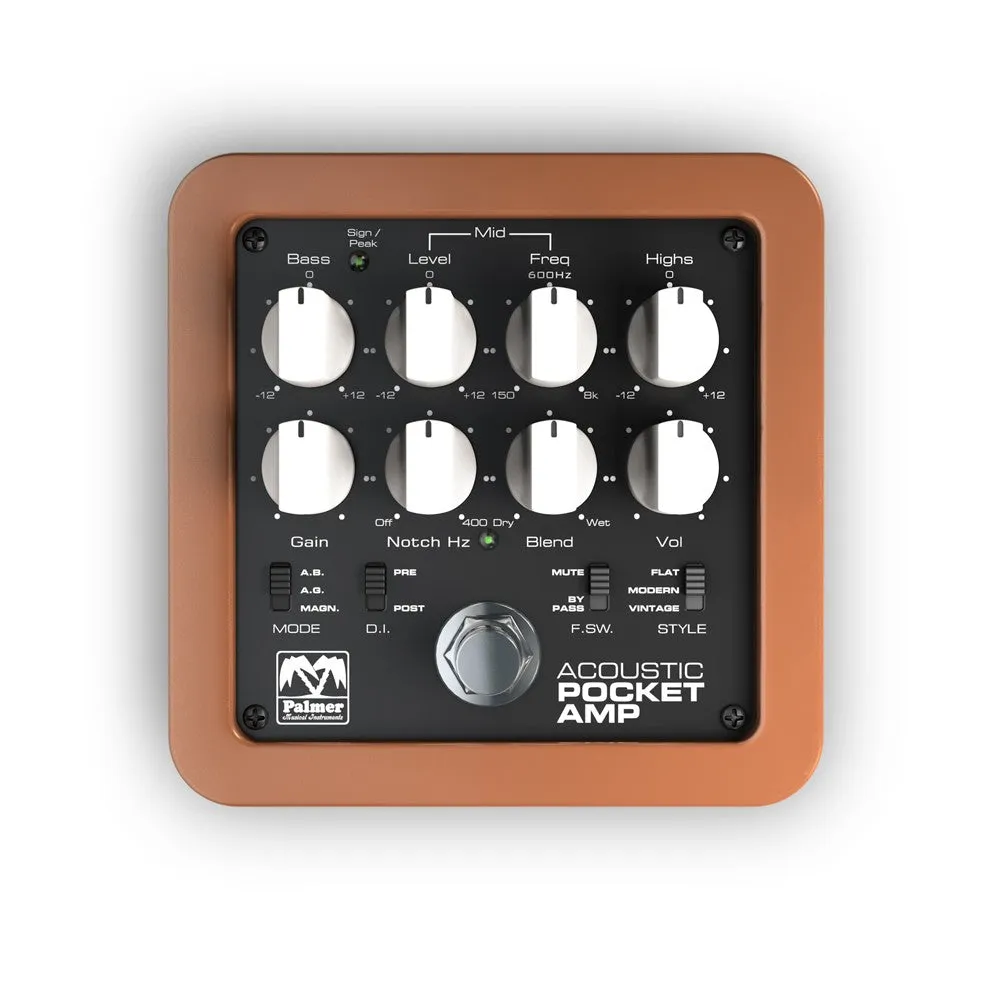

Providing extensive sound shaping options for acoustic guitars and basses, the Acoustic Pocket Amp is a versatile preamp that‘s perfect for gigging, recording and practising. It accomodates both piezo and magnetic pickups, and the 3-band EQ with semi-parametric mid control is specifically tuned for acoustic instruments. The Pocket Preamp features an input limiter to prevent transient distortion while a 5-position rotary notch filter eliminates resonant frequency feedback. A mode switch selects between crisp contemporary or warm vintage sound characteristics, and a blend control allows you to mix the direct and processed signals.

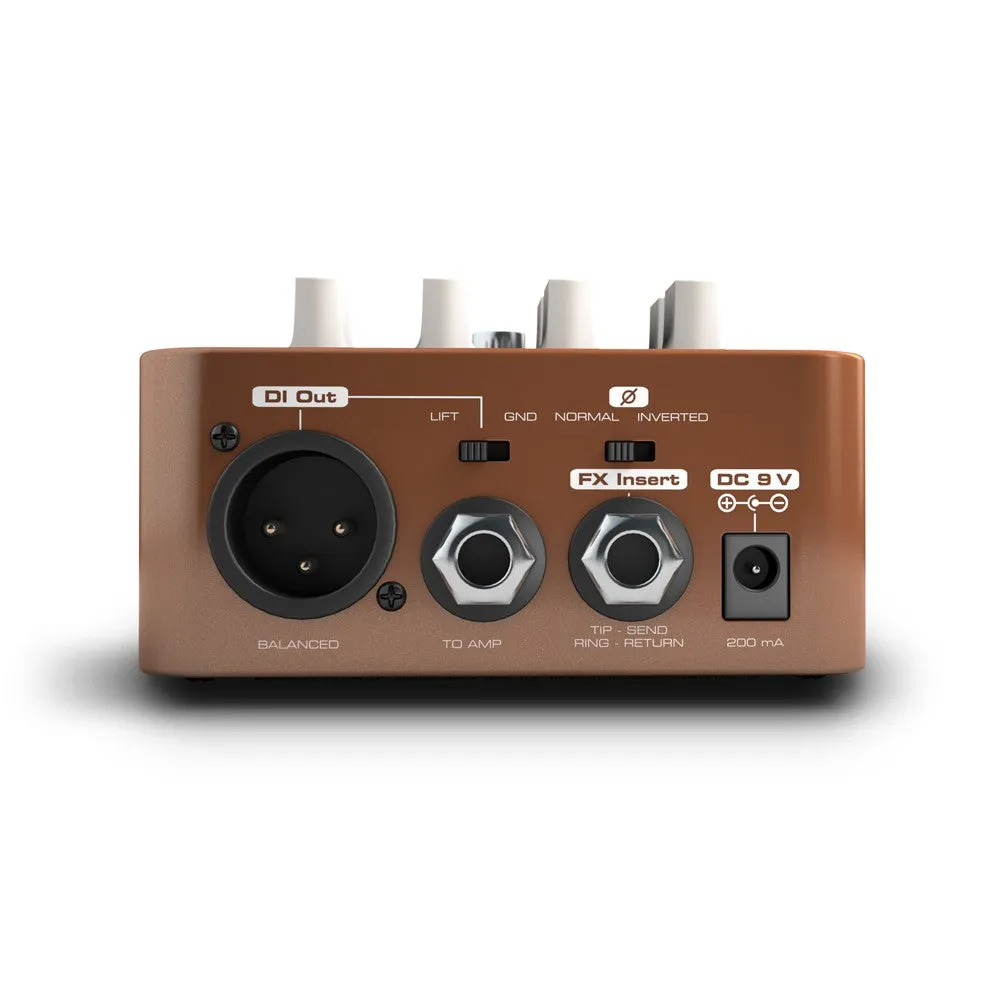

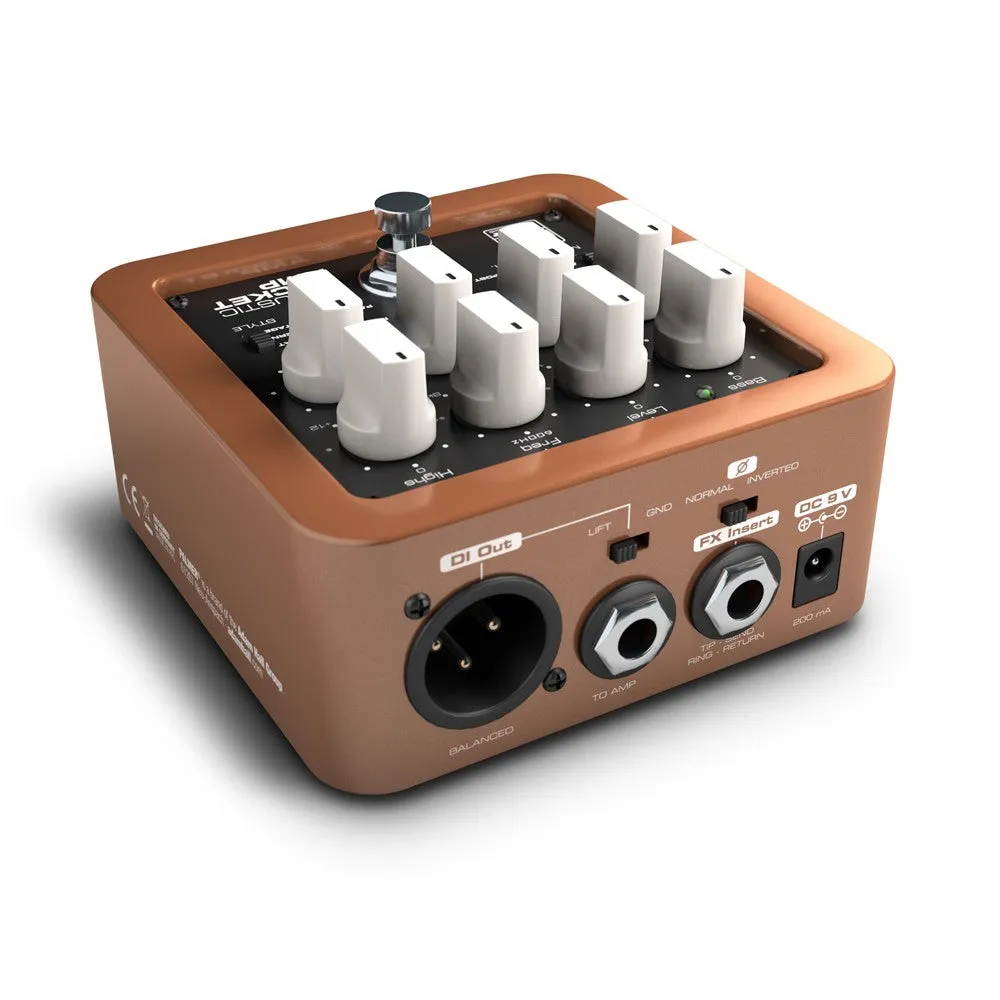

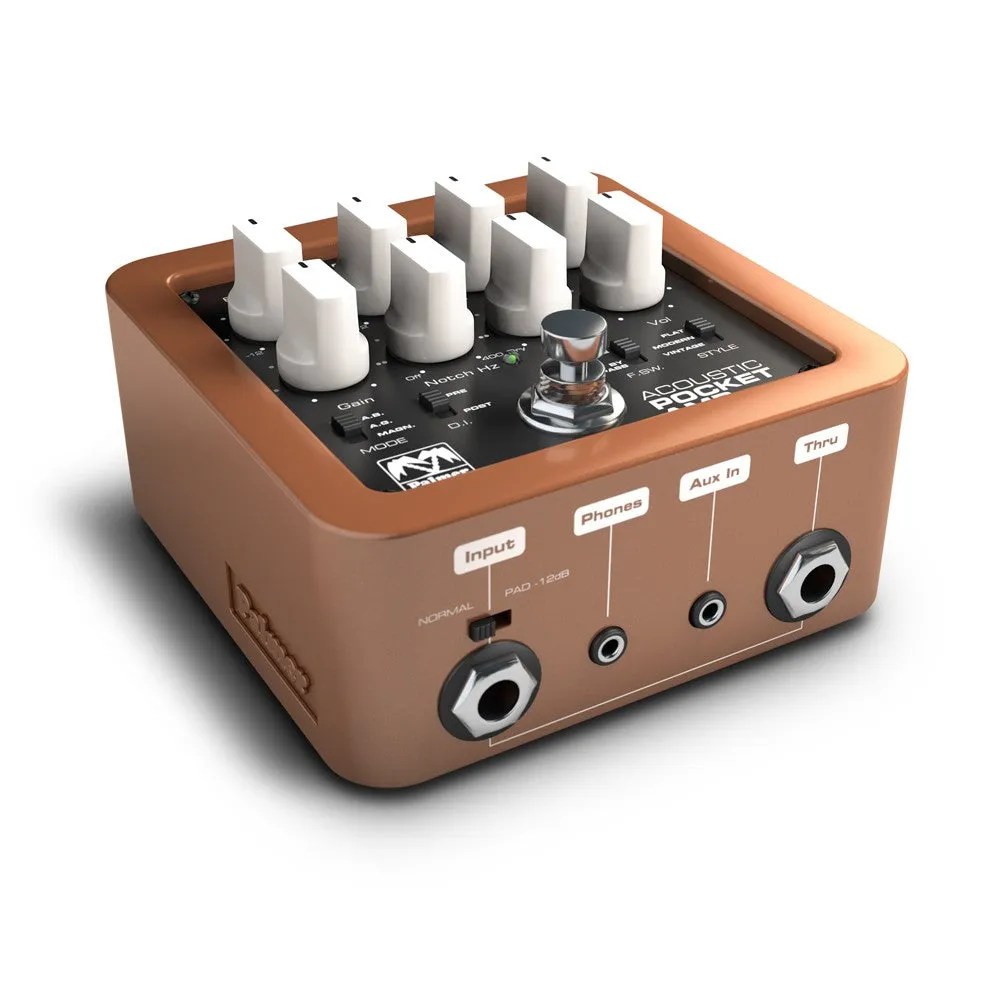

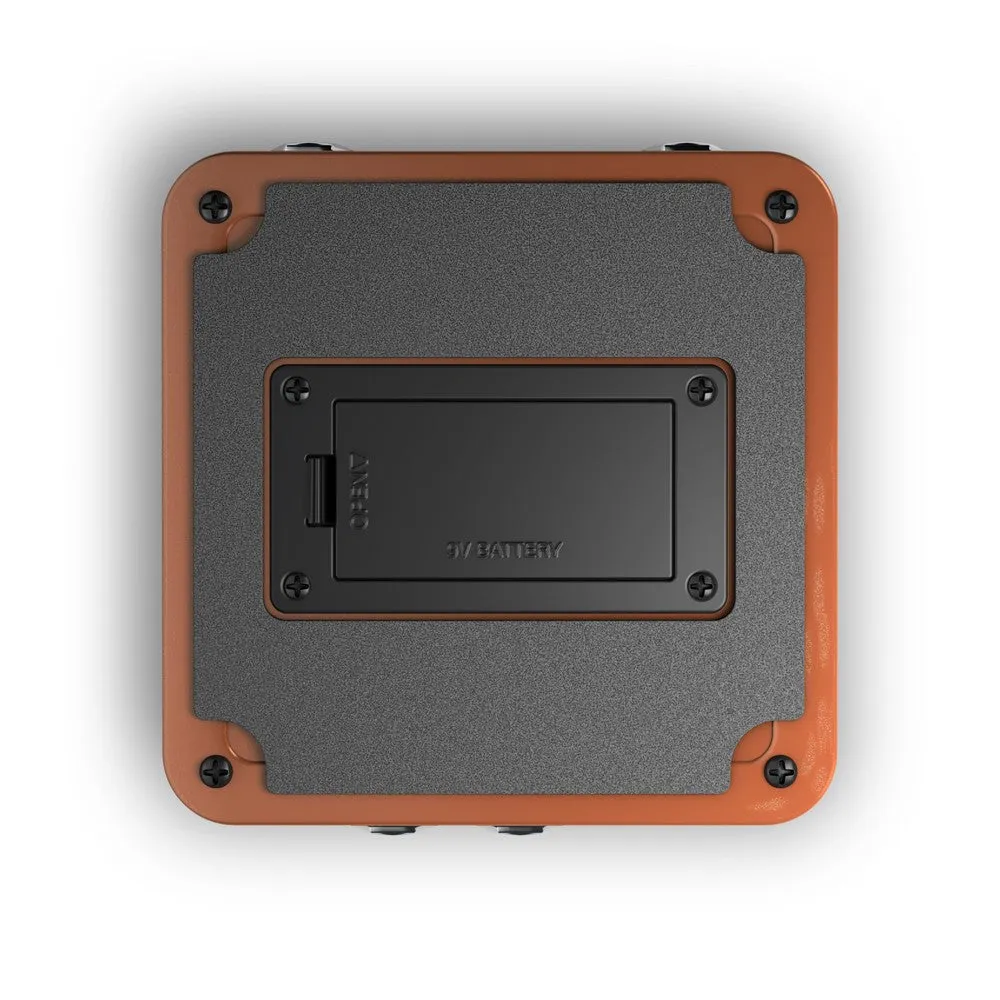

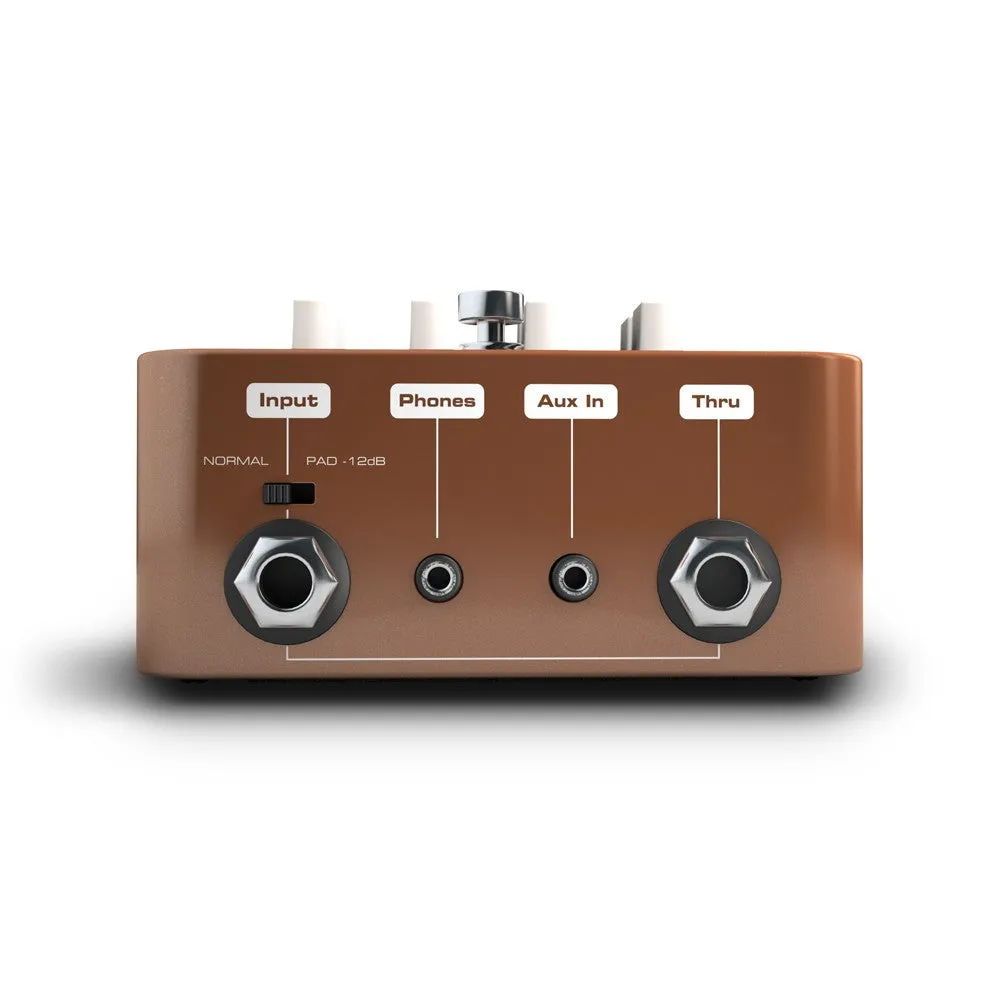

The Acoustic Pocket Amp provides an insert for external effects, 3.5 mm stereo line input, headphones output and a footswitch-assignable thru jack to connect a tuner. Enabling DI applications, the balanced XLR output is pre or post signal processing switchable. The Acoustic Pocket Amp requires a 9 volt battery or power adapter and comes in a rugged diecast enclosure with heavy duty long-life footswitch, convenient LED status indicators and ground lift.
Features
- Versatile acoustic preamp for instruments with piezo and magnetic pickups
- Compatible with instrument amplifiers, sound reinforcement systems and recording mixers
- Flat, Modern and Vintage sound mode switch
- Input limiter, polarity switch and notch filter
- 3-Band EQ with semi-parametric mid control
- Blend control for wet and dry signal mixing
- 3-pin XLR for balanced DI, pre or post signal processing switchable
- Footswitch-assignable tuner output
- Insert, stereo line input and ground lift
Specifications
| Product type | Guitar Effects |
| Type | Preamp |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Input impedance | 1 M Ohm(s) |
| Outputs | 4 |
| Output connectors | 6.3 mm jack |
| Output impedance | 100 Ohm (XLR) / (TRS) - 500 Ohm(s) |
| Controls | Bass , Blend , Di , footswitch , Gain , highs , Mid , mid frequency , Mode , Notch , Style , volume |
| Indicators | on/off , peak , Signal |
| Operating voltage | 9 V block , 9 V DC power supply |
| Cabinet material | Die-cast aluminium |
| Width | 100 mm |
| Depth | 100 mm |
| Height | 55 mm |
| Weight | 0,41 kg |
| Features | FX loop |
