Product Details
＋

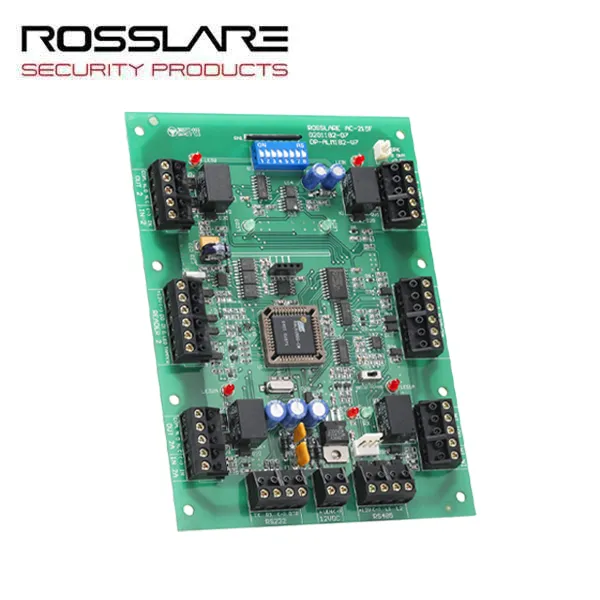

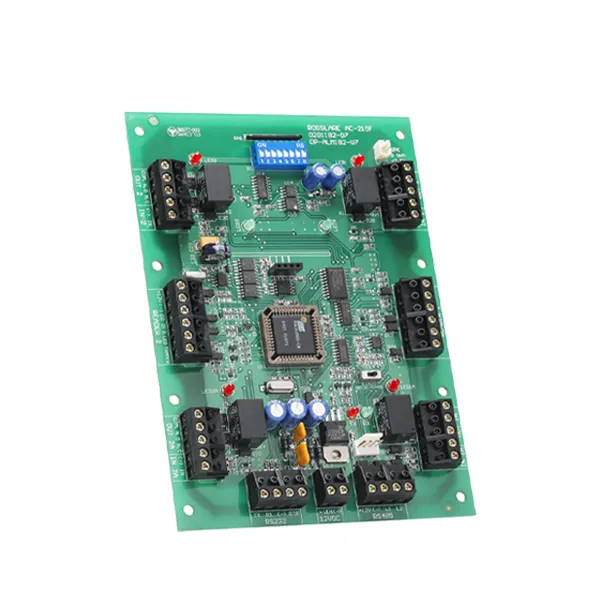

The state-of-the-art single/dual door AC-215 networked access controller is the backbone of medium scale security systems handling up to 5,000 users and 2046 doors. Driven by Rosslare s powerful, flexible, and easy to use AxTraxNG software, the system provides an ideal modular and expandable solution for commercial and institutional needs. It provides seamless integration with Rosslare s range of RFID Proximity, PIN, PIN & PROX, Smartcard and biometric readers with Rosslare s selection of RFID credentials.
Features:
- Up to 5000 users with access rights for every panel, across 2046 modular doors in a system
- 5000 First In First Out history event log, when offline
- Internal charger for external battery backup
- Supports PIN-only, PIN & PROX, or PROX-only readers
- Real-time clock keeps time for up to 2 weeks without power. No batteries to replace
Specifications:
| Capacity | 5000 users and 20,000 users without rights (Time & Attendance) |
| History Event Log Size | 5000 events |
| Connectivity | RS-485/232, Dial-up (using MD-N33), TCP/IP (using MD-N32) |
| Networking | 32 units/subnet on RS-485 |
| Audio/Visual | Built-in sounder (Alarm, Chime, Bell) 8 on-board LEDs and 3 LEDs on power supply (PS-14) |
| Modes of Operation | Single Door (In/In), Dual Door (In/Out) |
| Time Zones and groups | 17 multiple segment time zones, 64 holidays |
| Special Features | Interlock, first person delay, auto relock, scheduled outputs operation, 4 programmable site codes, extended unlocked time |
| Security Modes | Normal, Secure, Unlocked |
| Product Warranty | 2-Year Limited Product Warranty |
