| Product Attribute | Attribute Value |
|---|---|
| Bulb Type | Incandescent, LED |
| Color | Orange |
| Diameter, Base | 70 mm |
| Enclosure Rating | IP65 |
| Family Name | Harmony XVB Family |
| Height | 2.48" (63mm) |
| IP Rating | IP65 |
| Lens Color | Orange |
| Minimum Operating Temperature | -25 °C |
| Mounting Style | Panel Mounted |
| Primary Type | Module |

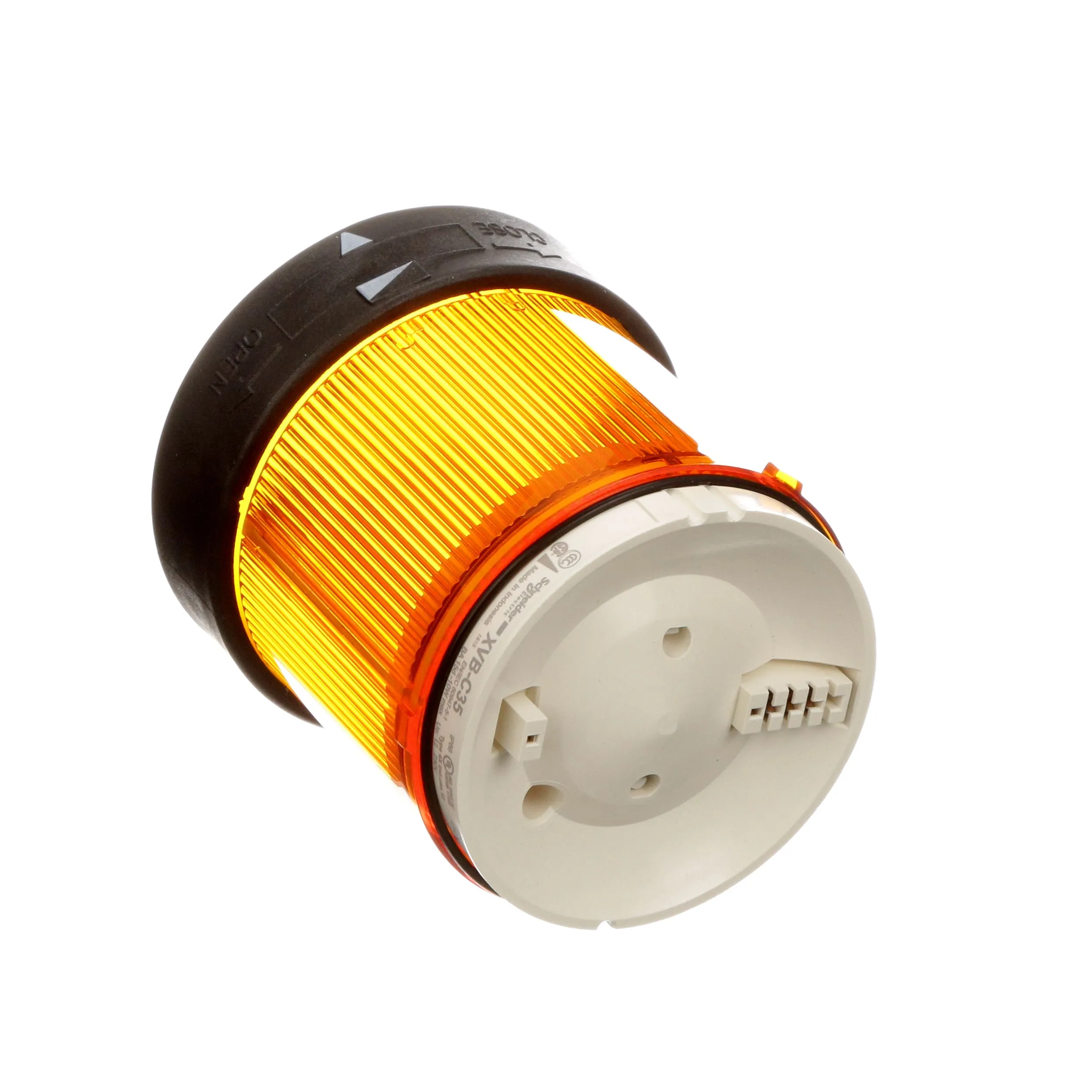

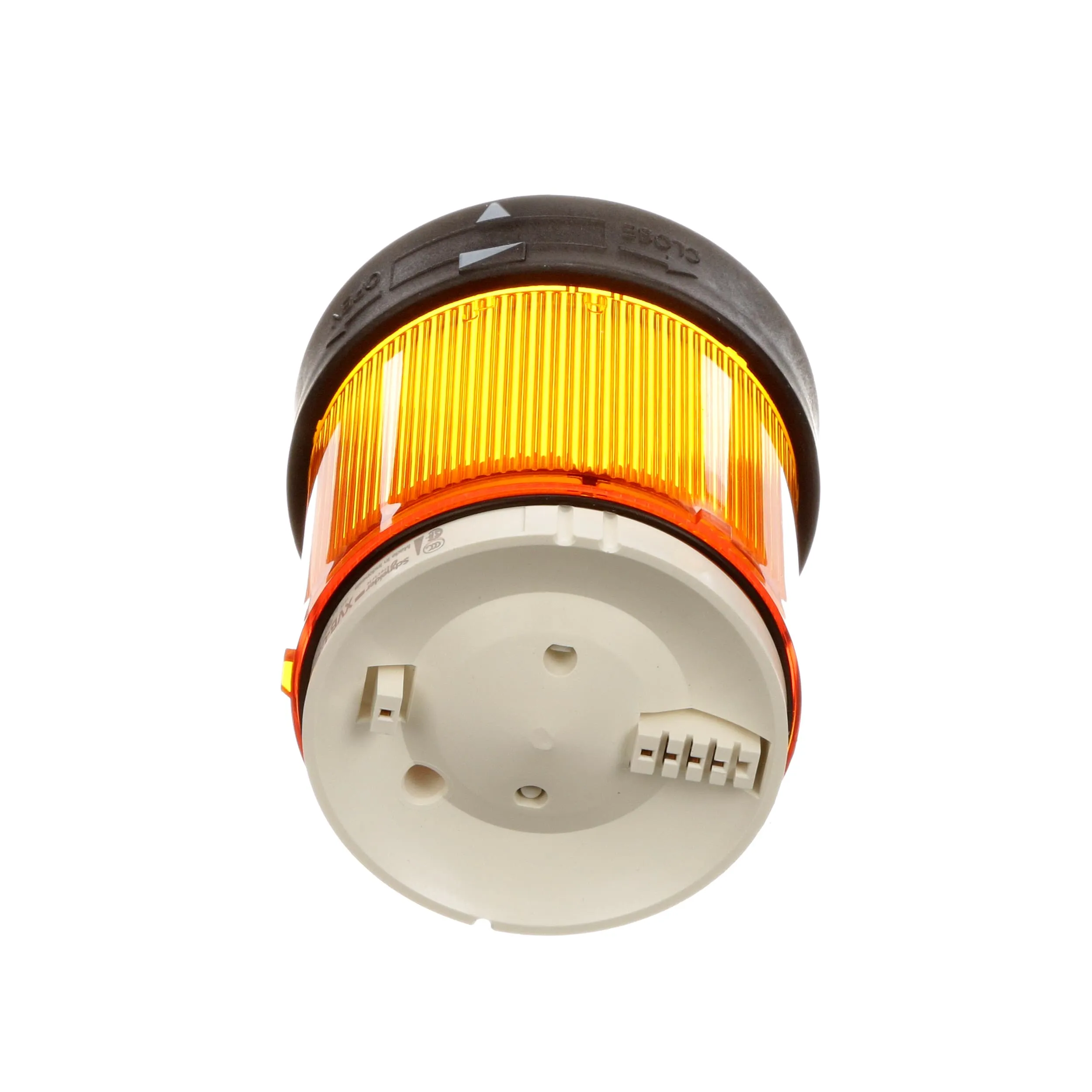

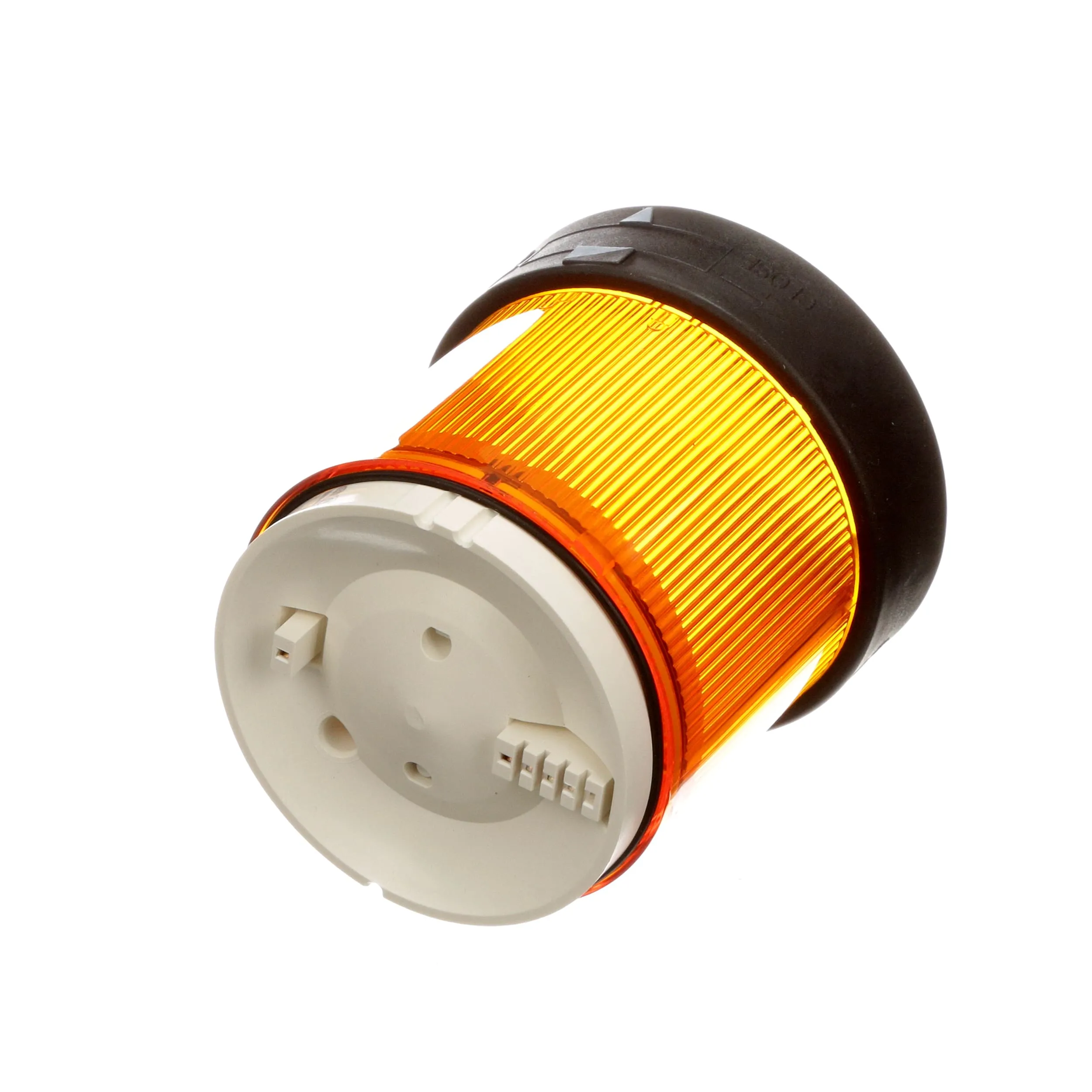

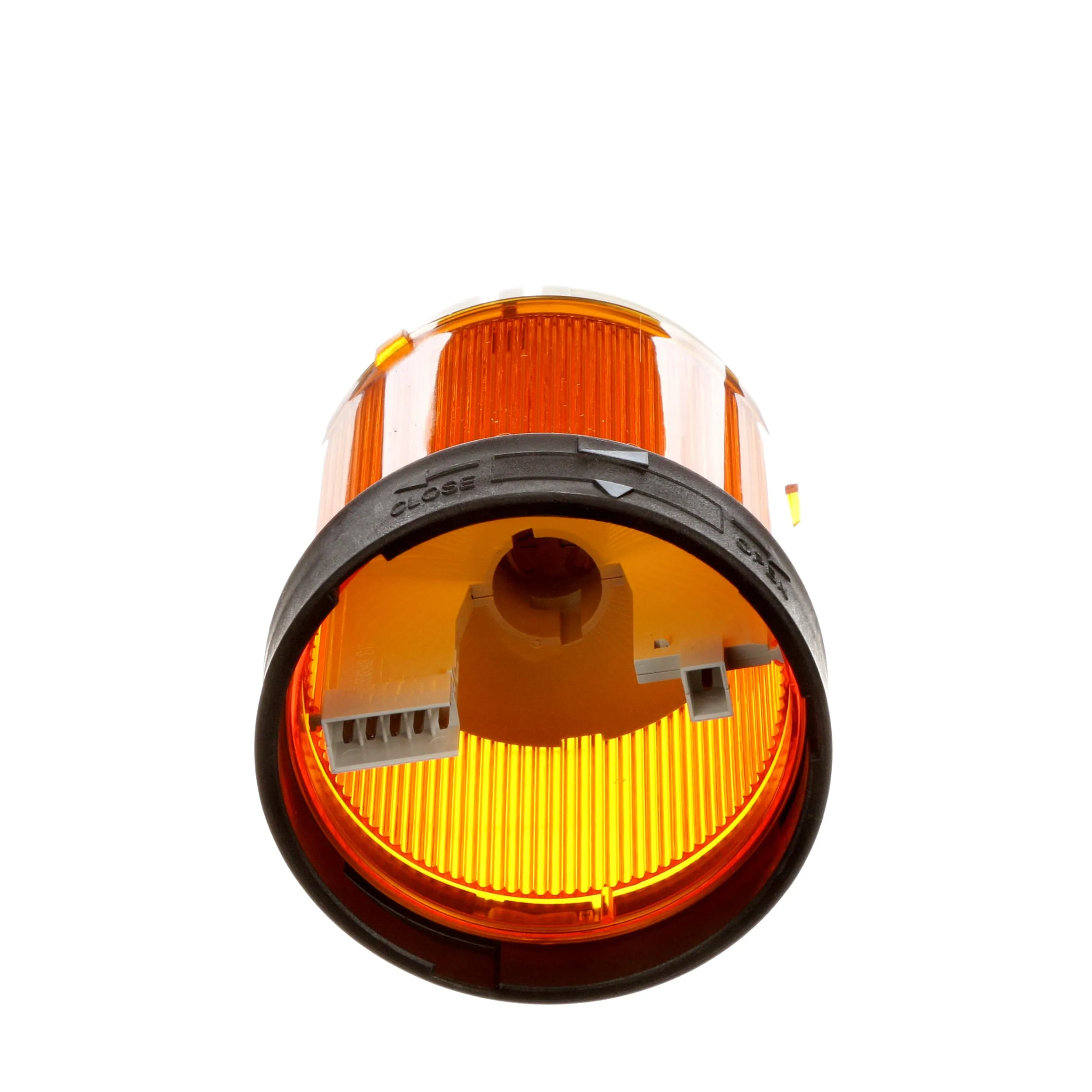

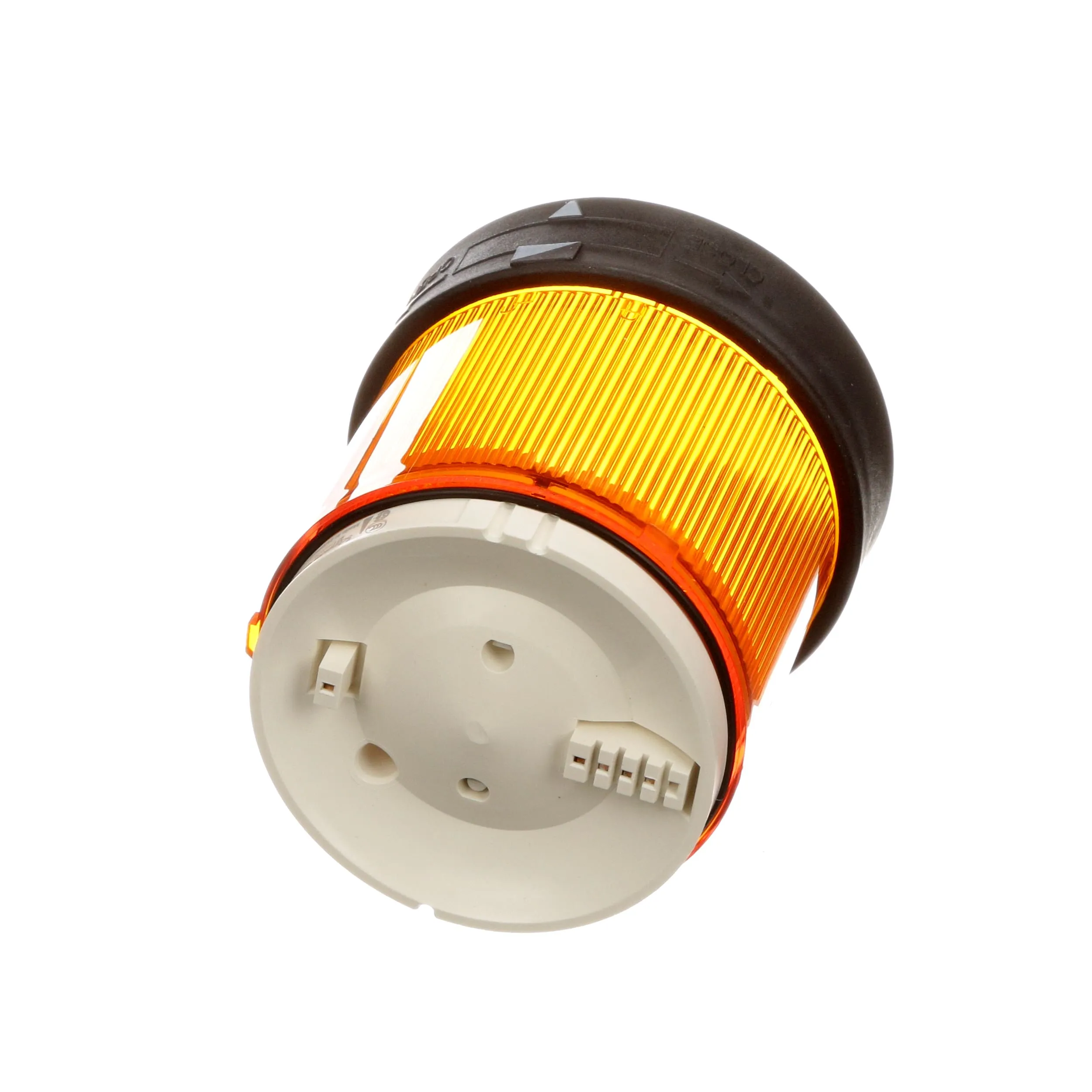

| Product Header | XVB Type Indicating Bank Lens Unit |
| Series | |
| Size | 70 mm |
| Special Features | High Degree of Protection |
| Supply Voltage | 250 VAC |
| Temperature Range | -25 to 50 (LED), -25 to 70 (Incandescent) °C |
| Temperature, Opening, Maximum | 70 °C |
| Type | Steady |
| UPC Code | 785901341925 |
| Voltage Rating | 250 V |
Overview
Schneider Harmony® XVB Series — Light Towers | 70 mm modular beacons and tower lights, with steady or flashing lights, and with incandescent or LED illumination:
The beacons and tower lights of the Harmony® XVB range are visual or audible signaling units used for indicating, throughout 360° and at a distance, the various states or operation sequences of a machine or installation. Examples: start, stop machine, no material, call technical staff, fault signaling, etc.
Complete illuminated beacon XVBL readily assembled 1 with a single illuminated signaling unit:
— Steady light (with incandescent bulb or LED)
— Flashing light (with incandescent bulb or LED)
— Or “flash" (with discharge tube)
The XVBL beacons comprise:
— A base unit with a removable terminal block and a bottom or side cable entry
— One colored illuminated unit (green, red, orange, blue, clear or yellow)
